Waterproof Ultrasonic Sensor

Waterproof Ultrasonic Sensor

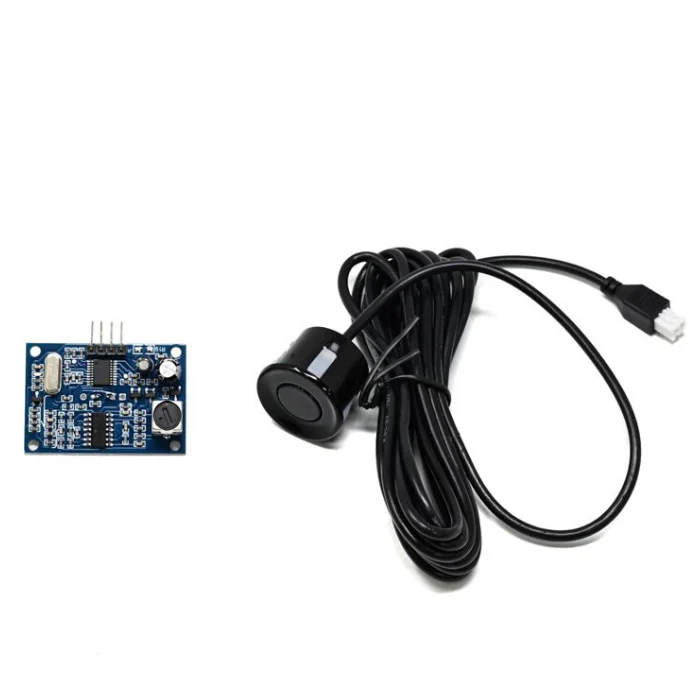

This Waterproof ultrasonic sensor is very similar to the Ultrasonic sensor which is found in cars. This Waterproof Ultrasonic Obstacle Sensor shows some important constructional advantages over the conventional sensors. It comes in two separate parts one being the transducer which is the sensing element and the other being the control board.

The module is capable of providing information on the objects between the distance range of 250 mm to 4500 mm. The great advantage of using this Waterproof Ultrasonic sensor is you can put the sensing element far away from all the control circuitry.

This Ultrasonic Distance Sensor is an industrial-grade sensor to measure distance. Interfacing with it is the same as another cheap ultrasonic sensor, but it offers better performance and is compatible with harsher environments and is waterproof too.

There are many ultrasonic distance sensors on the market, but sometimes, this kind of sensor needs to work in vulnerable conditions.

It is very easy to use, a control port with a 10US above high level can wait for high-level output at the receiving port. An output can drive the timer when this port is low can read the timer value, this time for the location of the time can be distance measurement. Constantly cycle tests that can achieve the measurement of the value of your mobile.

It allow us to measure the distance between stationary objects such as walls, floors or ceilings with unparalleled accuracy. These advanced technology-packed devices detect changes in humidity levels, temperature fluctuations and other environmental conditions that could compromise safety of our valuables stored inside buildings we own or manage.

The environmentally sealed waterproof bodies provide protection against dust particles while allowing full access to settings at all times making it very easy for anyone to use them even without technical knowhow.

Robocraze's range of waterproof ultrasonic sensors guarantees high precision performance both indoors and outdoors regardless of how wet your environment gets - be it rainwater flooding waters from rivers or oceans!

Looking for the Best Price for a Waterproof Ultrasonic Sensor Online?

At Robocraze, the price starts at ₹249, with variations depending on ongoing offers, brand availability, and stock updates. We ensure competitive pricing without compromising on quality, offering thoroughly tested and reliable sensors that outperform many low-cost alternatives in durability and accuracy. Unlike generic marketplace listings, our products undergo quality checks to ensure consistent performance in real-world applications such as water level monitoring, outdoor distance measurement, and industrial automation. Pricing may vary based on promotional offers and brand selection, but our commitment to delivering value and dependable performance remains constant across all upcoming ultrasonic sensor variants.

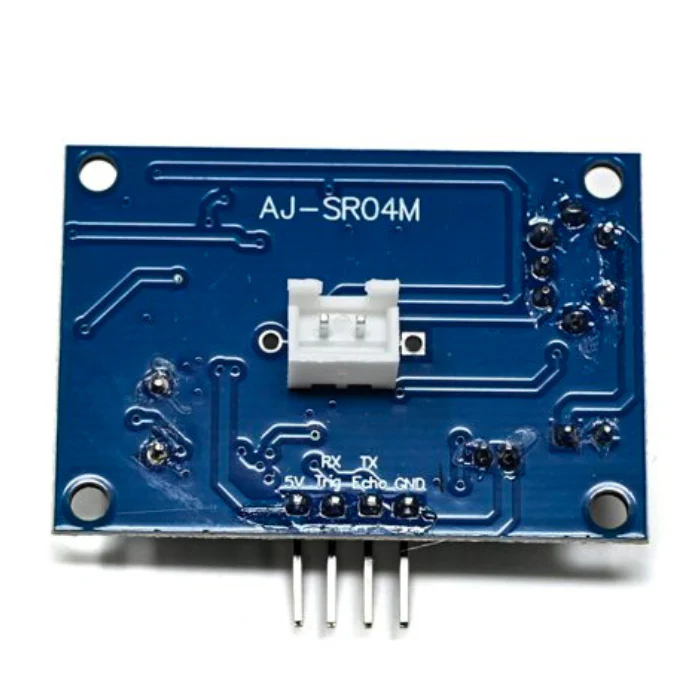

Wiring of the Waterproof Ultrasonic Sensor

• +5V(positive)
• Trig(control)
• Echo(receive)
• GND(negative)

Circuit Diagram: Waterproof Ultrasonic Sensor Interfacing with Arduino

Features:

• Designed to work in wet or harsh environments.

• Built for reliable and accurate distance measurement.

• Can measure distances between 250mm and 4500mm.

• Simple interface, compatible with Arduino projects.

• Suitable for various applications like water level measurement, obstacle avoidance, and traffic control.

Application

• Water level measuring system
• Horizontal distance
• Obstacle avoidance, automatic control
• Traffic control
• Security, industrial control
• Artificial intelligence, and research.

Waterproof Ultrasonic Sensor vs HC-SR04 Comparison

Specification	Waterproof Ultrasonic Sensor (JSN-SR04T)	HC-SR04 Ultrasonic Sensor
Operating Voltage	5V DC	5V DC
Detection Range	25cm – 450cm	2cm – 400cm
Water Resistance	Waterproof (suitable for outdoor and wet conditions)	Non-waterproof (indoor use only)
Operating Frequency	40kHz	40kHz
Beam Angle	Not specified	≤ 15°
Applications	Outdoor sensing, water level measurement, obstacle detection	Indoor robotics, proximity sensing, distance measurement
Cost	Higher due to waterproof design	Lower, ideal for basic hobby projects



Waterproof Ultrasonic Sensor Specifications Comparison:

Feature	Standard Ultrasonic Sensor	Waterproof Ultrasonic Sensor
Operating Voltage	5V	5V
Measuring Range	2cm – 400cm	20cm – 600cm
Waterproof Rating	No	IP67
Operating Frequency	40 kHz	40 kHz
Accuracy	±3mm	±1cm
Operating Temperature	0°C to 70°C	-15°C to 70°C
Suitable For	Indoor Projects	Outdoor & Harsh Environments
Sensor Design	On-board Transducer	Separate Waterproof Probe with Cable
