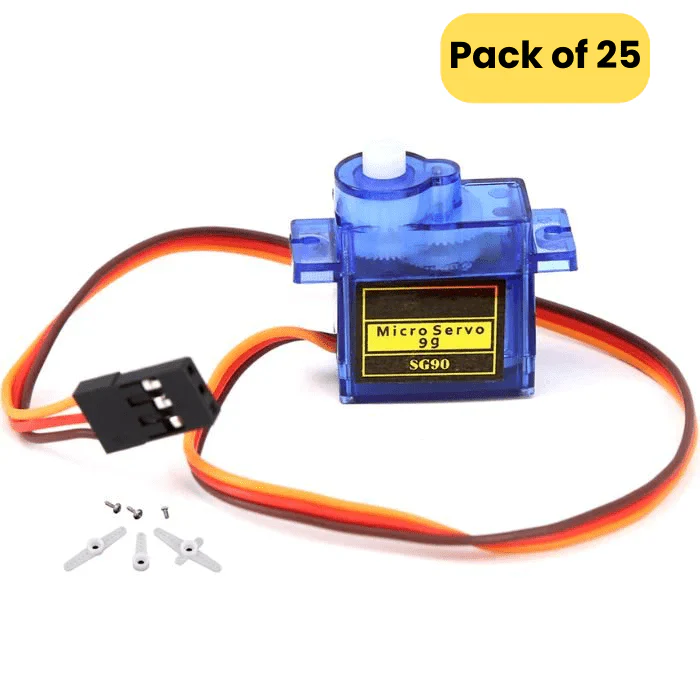

SG90 Micro Servo Motor (Pack of 25)

SG90 Micro Servo Motor

The TowerPro SG90 1.2kg 180 Degree Rotation Servo Motor rotates 90° in each direction making it a 180° servo motor. It is a Digital Servo Motor that receives and processes PWM signals faster and better. It equips sophisticated internal circuitry that provides good torque, holding power, and faster updates in response to external forces. You can control this servo motor with Arduino which is connect by jumper wires and powered by battery.

The servo sg90 are packed within a tight sturdy plastic case which makes them water and dust-resistant which is a very useful feature in RC planes, Boats, RC Monster Trucks, etc. It equips a 3-wire JR servo plug which is compatible with Futaba connectors too.

The sg90 servo motor equips Carbon Fiber Gears which makes the servo motor much lighter than same metal gear motor. For small load applications using the metal gear, servo motor adds on unnecessary weight, so we suggest using this lightweight plastic gear servo motors.

Wire Description:

Red – Positive

Brown – Negative

Orange – Signal

Features:

• Accurate positioning
• Fast control response
• Constant torque throughout the servo travel range
• Excellent holding power

Applications:

• Robotic arm
• CNC machine
• Steering systems
• RC cars
• Automatic door opener
• Home automation applications
