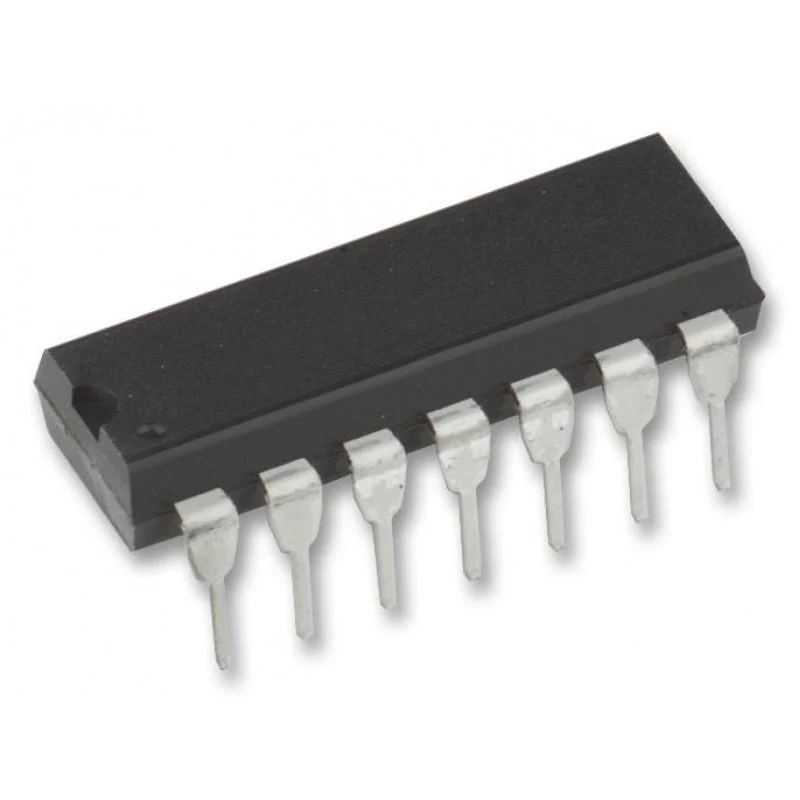

Quad 2-input OR gate IC - CD4071
The CD4071 2-input quad gates IC are monolithic complementary MOS (CMOS) integrated circuits constructed with N- and P-channel enhancement mode transistors. The CD4x Series CD4071 have equal source and sink current capabilities and conforms to the standard B series output drive.
The devices also have buffered outputs which improve transfer characteristics by providing very high gain. All inputs are protected against static discharge with diodes to VDD and VSS.
check out : CD4011 - Quad 2-Input NAND Gate IC
Pinout:
Pinout of CD4071 IC
| Pin Name | Pin # | Type | Description |
|---|---|---|---|
| VDD | 14 | Power | Supply Voltage (+3 to +15V) |
| GND | 7 | Power | Ground (0V) |
| A1 to A4 | 1, 5, 8, 12 | Input | Inputs A of the four OR gates |
| B1 to B4 | 2, 6, 9, 13 | Input | Inputs B of the four OR gates |
| Q1 to Q4 | 3, 4, 10, 11 | Output | Outputs from the four OR gates |
