Openpilot CC3D Flight Controller

Openpilot CC3D Flight Controller

This OpenPilot CC3D EVO Flight Controller Straight Pin card has a smooth feature that makes it directly compatible with satellite receivers without the need for any additional cables. The 3-axis MEMs technology is used for both gyro and accelerometer.

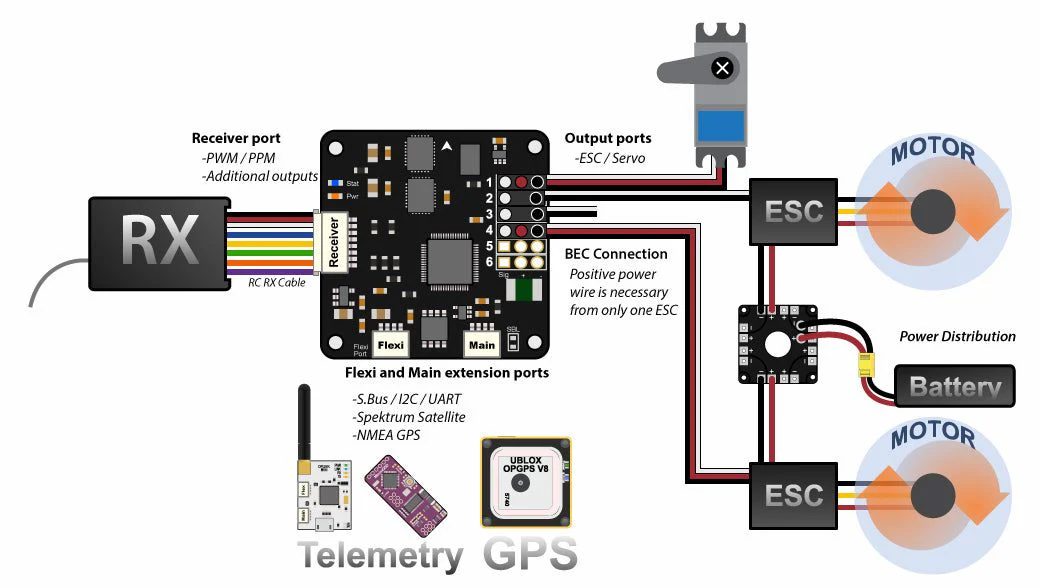

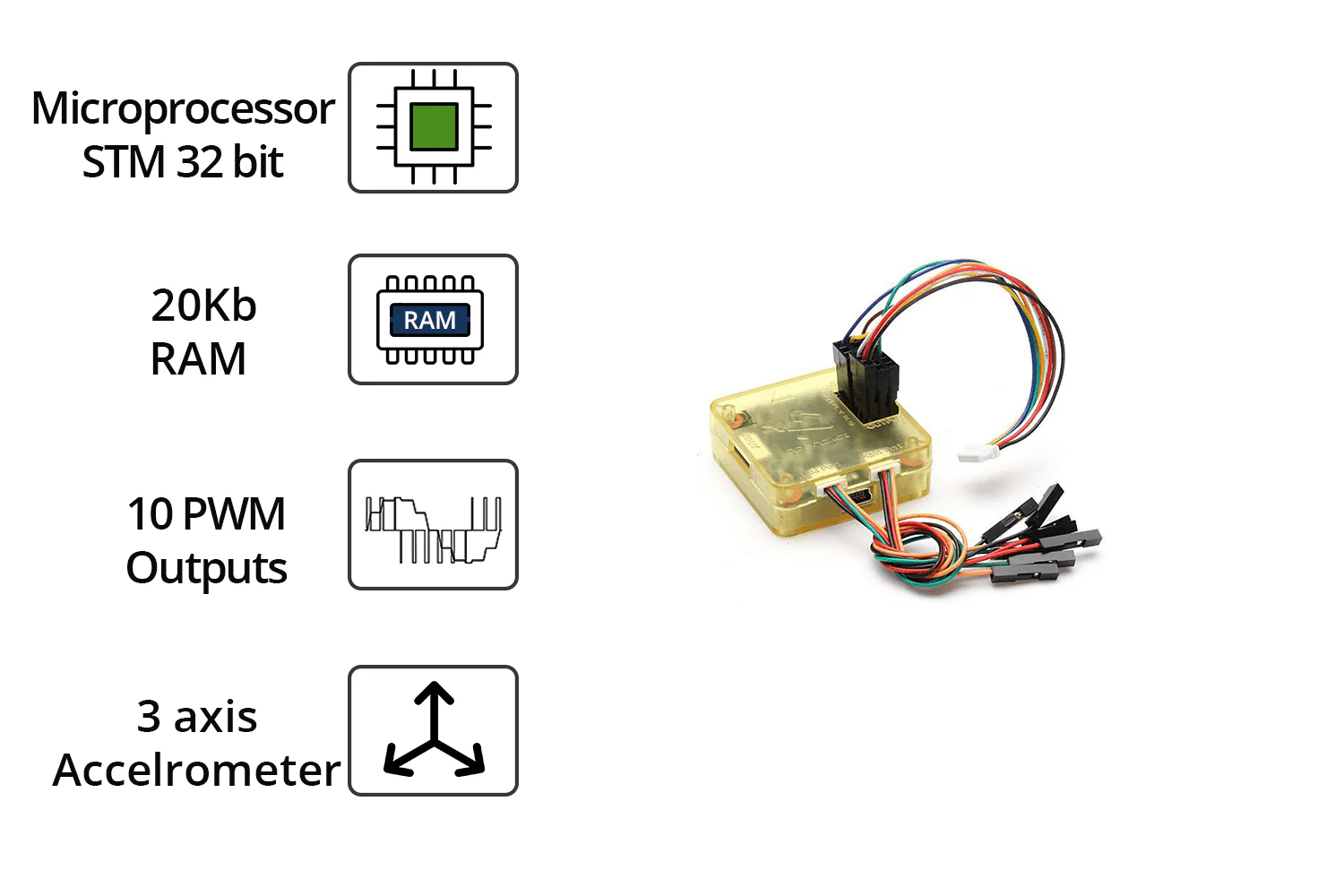

The Openpilot CC3D flight controller is integrated with a powerful STM32 bit microprocessor that runs at 90MIPs with 128Kb flash and 20Kb RAM. This flight controller features a high-performance 3 axis accelerometer and MEM gyrometer. The camera stabilization system supports up to 3axis  camera mounts with stabilization and manual control from any of configured receivers.

Features of OpenPilot CC3D EVO Flight Controller

Microcontroller	STM 32 bit microcontroller
Futaba S-BUS hardware support	Yes
Spektrum satellite receiver support	Yes
Onboard memory	4 Mbit
PWM outputs	10
Dimensions	5 x 4 x 3cms
Weight	25 grams
