NEO-M9N GPS Breakout Board for Precision GNSS Positioning - 7Semi

NEO-M9N GPS Breakout Board for Precision GNSS Positioning - 7Semi

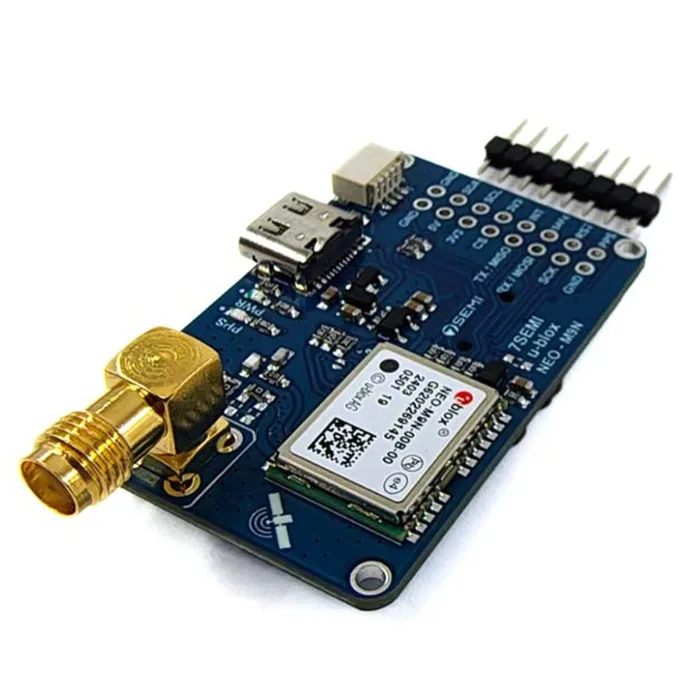

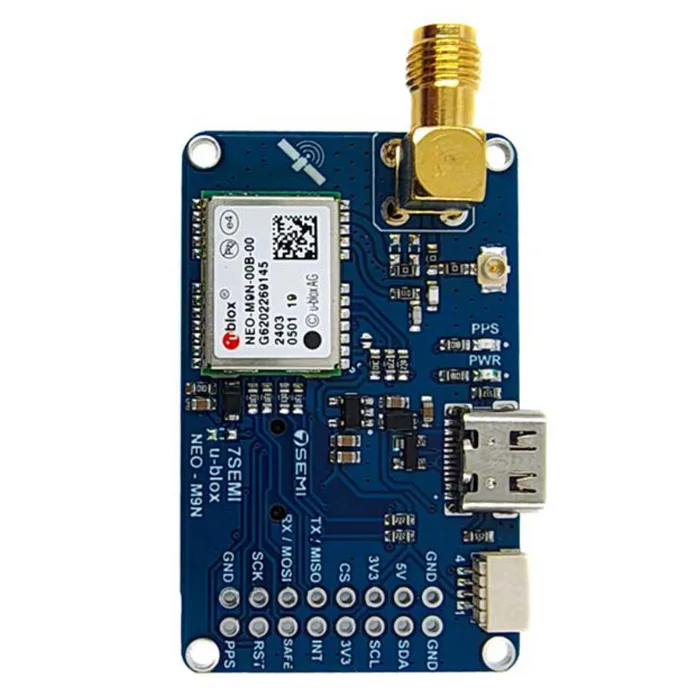

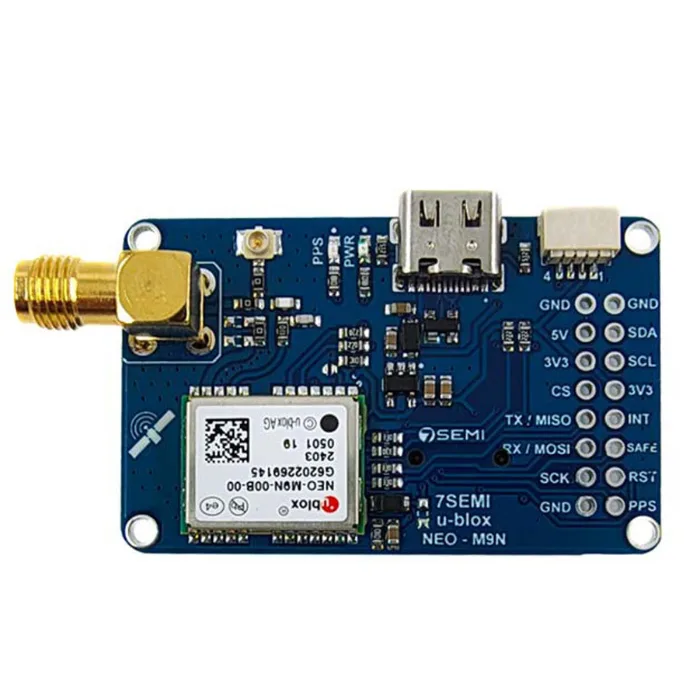

The 7Semi NEO-M9N GPS Breakout Board is a compact GNSS module designed for high-precision positioning. Powered by the u-blox NEO-M9N chip, it supports concurrent tracking of GPS, GLONASS, Galileo, and BeiDou for faster and more accurate location data. With position update rates up to 25Hz, it’s ideal for drones, robotics, and navigation systems. It operates on 3.3V and offers I2C and UART interfaces, making it easy to integrate with various development boards and embedded systems.

Features

• High-Precision GNSS Receiver: Supports GPS, GLONASS, Galileo, and BeiDou with ~1.5m accuracy.

• Fast Position Fixes: Onboard rechargeable battery enables hot start in just 2 seconds.

• Anti-Jamming & Anti-Spoofing: Detects and alerts to jamming or spoofing events for secure operation.

• Flexible Connectivity: Supports NMEA, UBX, and RTCM protocols via UART or I2C.

• Configurable Features: Customise with geofencing, spoofing detection, and more via Arduino Library or u-centre.

• Broad Compatibility: Perfect for drones, robotics, and applications requiring real-time precision GNSS data.
