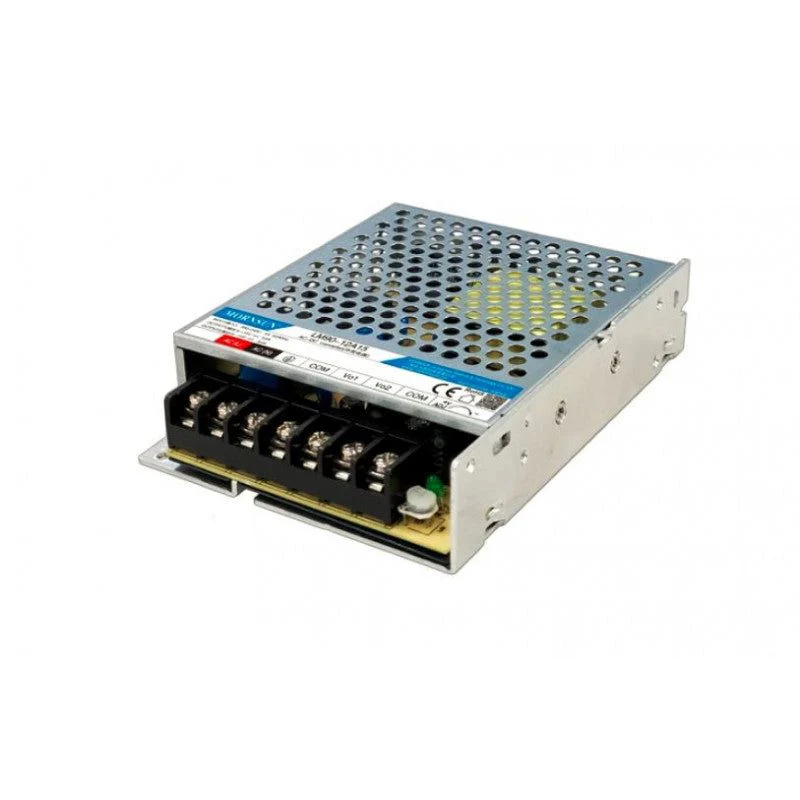

Mornsun LM90-12A15 AC/DC 90W Enclosed Switching Power Supply

Mornsun LM90-12A15 AC/DC 90W Enclosed Switching Power Supply

The LM90-12A15 series is a dual output, non-isolation, enclosed AC-DC switching power supply from Mornsun. It features a universal AC input, DC input voltage acceptance, cost-effectiveness, high efficiency, high reliability, double or reinforced insulation, excellent EMC performance, and compliance with IEC/EN61000-4, IEC/UL/EN62368, and GB4943 standards. It is not only used in the laser galvanometer industry, but also in current sensors, motors, and other fields.

Features

• Universal AC input: The LM90-12A15 series can be used with a wide range of AC input voltages, making it suitable for use in a variety of locations.
• DC input voltage acceptance: The LM90-12A15 series can also be used with DC input voltages, providing additional flexibility.
• Cost-effectiveness: The LM90-12A15 series is a cost-effective solution for a variety of applications.
• High efficiency: The LM90-12A15 series is highly efficient, helping to reduce power consumption and costs.
• High reliability: The LM90-12A15 series is designed to be highly reliable, providing peace of mind for users.
• Double or reinforced insulation: The LM90-12A15 series features double or reinforced insulation, providing additional safety.
• Excellent EMC performance: The LM90-12A15 series has excellent EMC performance, making it suitable for use in a variety of environments.
• Compliance with IEC/EN61000-4, IEC/UL/EN62368, and GB4943 standards: The LM90-12A15 series complies with a variety of industry standards, ensuring its quality and performance.

The LM90-12A15 series is a versatile and reliable power supply that can be used in a variety of applications. It is a cost-effective solution that offers excellent performance and features.

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25?, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5?/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be cl assified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
