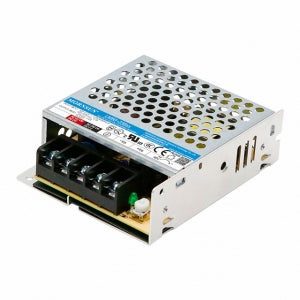

Mornsun LM50-23B24 AC/DC 50W Enclosed Switching Power Supply

Mornsun LM50-23B24 AC/DC 50W Enclosed Switching Power Supply

The LM50-23B24 is a 24V, 2.2A, 52.8W AC/DC power supply from Mornsun. It has a wide input voltage range of 85-305VAC or 120-430VDC, and can be used in a variety of applications, such as industrial control, automation, and telecommunications.

The LM50-23B24 features a high efficiency of up to 88%, which helps to reduce power consumption and heat dissipation. It also has a built-in thermal overload protection circuit that prevents the unit from overheating.

The LM50-23B24 is a compact and lightweight unit that is easy to install and use. It is also RoHS compliant and comes with a one-year warranty.

Features:

• 24V, 2.2A output
• 52.8W output power
• Wide input voltage range: 85-305VAC or 120-430VDC
• High efficiency up to 88%
• Built-in thermal overload protection
• Compact and lightweight design
• RoHS compliant
• One-year warranty

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25?, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5?/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
