M5Stack LAN Module with W5500

M5Stack LAN Module with W5500

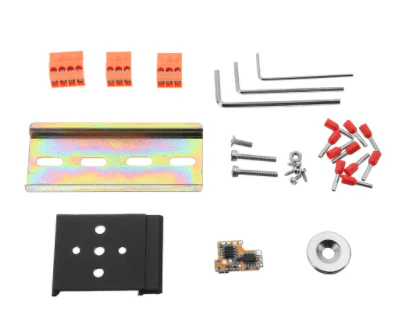

Although the M5 core is ESP32-based, having Wi-Fi and Bluetooth integrated, it doesn't stop you enable the Ethernet function. This LAN is an M5 Base that has a W5500 chip, which is a Hardwired TCP/IP embedded Ethernet controller that provides an easier Internet connection to embedded systems. This Base is specifically designed for industrial application scenarios, comes with a couple of HT3.96 connectors, 485 metal rail, and magnet discs for easy installation and fixation. The 6 pin of the HT3.96 connector are dangling, you can wire them up with the M-BUS and other circuits as you like.

Applications:

• M5Core + LAN implementing a conveyor controller
• PC transmits video to Core via cable
