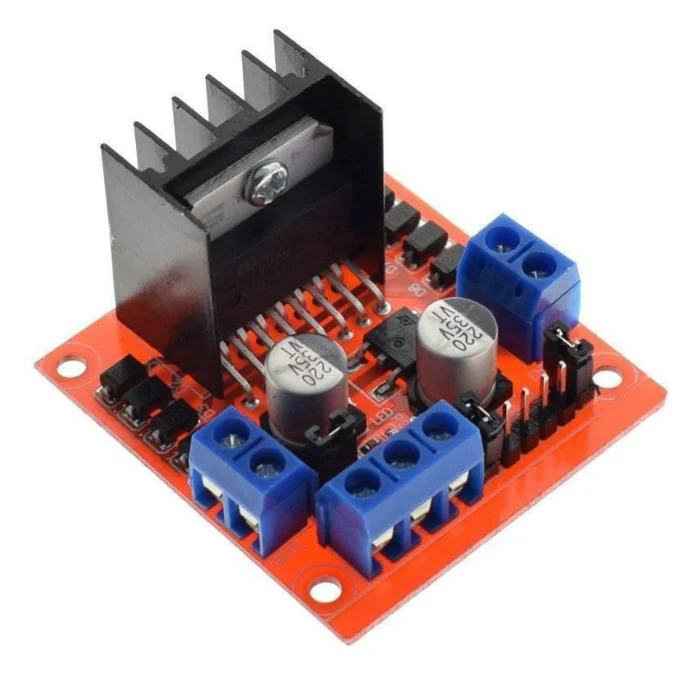

2A Dual L298N Motor Driver Module with PWM Control

2A Dual L298N Motor Driver Module with PWM Control

The L298N Motor Driver Module is a great choice for controlling motors! It contains a double H bridge L298N chip, which has a maximum voltage of 46V and a current of 2A. This L298N High-voltage Dual-channel motor driver works with a logic voltage of 5V and can drive motors with a voltage range of 5-35V, giving you good efficiency with a maximum power output of 25W.

One cool feature of the L298N-based motor driver module is that it has current sensing for each motor, so you can easily check how they’re doing. It also features a heatsink to keep it cool while running, which increases efficiency. Also, there is a power-on LED indicator that indicates when it is active. The L298N Module is perfect for controlling DC and Stepper motors, switches, relays, robotic cars, arms, etc.

Features:

• Uses an L298N IC for effective motor control.
• Includes a 78M05 Voltage Regulator for internal circuitry power.
• Jumper enables the voltage regulator for power supplies ? 12V; requires separate 5V for supplies > 12V.
• ENA and ENB pins control motor speed; IN1 & IN2 and IN3 & IN4 control motor direction.
• Features a Power LED for status monitoring.
• Compact design with integrated resistors and capacitors for stability.
• Easy to use with popular microcontrollers like Arduino.

Pinout

Pin Name	Description
IN1 & IN2	Motor A input pins. Used to control the spinning direction of Motor A.
IN3 & IN4	Motor B input pins. Used to control the spinning direction of Motor B.
ENA	Enable pin for Motor A — allows PWM speed control of Motor A.
ENB	Enable pin for Motor B — allows PWM speed control of Motor B.
OUT1 & OUT2	Output pins to Motor A — these connect to the two leads of Motor A.
OUT3 & OUT4	Output pins to Motor B — these connect to the two leads of Motor B.
12V	12V (or motor supply) input from DC power source — supplies power to the motors.
5V	Logic supply pin (5 V) — supplies power for the internal switching logic circuitry in the L298N IC.
GND	Ground pin — common reference for the logic and motor power supply.

Comparison: L298N vs L293D vs BTS7960 Motor Driver Modules

Specification	L298N	L293D	BTS7960
Operating Voltage	5V – 35V	4.5V – 36V	6V – 27V
Output Current (per channel)	Up to 2A	Up to 600mA	Up to 43A
Number of Channels	2 (Dual H-Bridge)	2 (Dual H-Bridge)	1 (Single H-Bridge)
PWM Control	Yes (ENA/ENB Pins)	Yes (Enable Pins)	Yes (PWM Input Pins)
Logic Voltage	5V	5V	3.3V – 5V compatible
Heat Dissipation	Moderate (Built-in Heat Sink)	Low (Needs external cooling for high load)	High (Integrated powerful MOSFETs with heat sink)
Motor Type Supported	DC Motors, Stepper Motors	DC Motors, Small Steppers	High-Power DC Motors
Efficiency	Medium (BJT-based)	Low (BJT-based)	High (MOSFET-based)
Suitable For	Robotics, Medium DC Motors	Basic Projects, Low-Power Motors	High-Torque Motors, Electric Vehicles

Applications:

• Robotic Cars
• Robotic Arms
• Controlling the motor's speed and direction
