The Jetson AGX Orin H01 Developer Kit with Jetson AGX Orin 32GB Module by Seeed Studio is a high-performance AI development kit designed for advanced robotics, autonomous machines, and edge computing solutions.

Powered by the Jetson AGX Orin 32GB Module, this development kit delivers an impressive 200 TOPs of AI performance, enabling demanding AI workloads with ease.

It offers a wide range of rich interfaces such as PCIe X16, Gigabit Ethernet, 10GbE, USB 3.2, HDMI 2.1, M.2 Key M and E slots, a 16-lane MIPI CSI-2, and a 40Pin header to support flexible expansion and connectivity.

Pre-installed with JetPack 5.1.2, the Jetson AGX Orin H01 Kit provides developers with a ready-to-use platform for efficient development and rapid prototyping of AI-powered applications.

Features:

• Brilliant AI Performance for Production: on-device processing with up to 200 TOPS AI performance at low power and latency, providing up to 10X the performance of Jetson Xavier NX and up to 6X the performance of Jetson AGX Xavier.

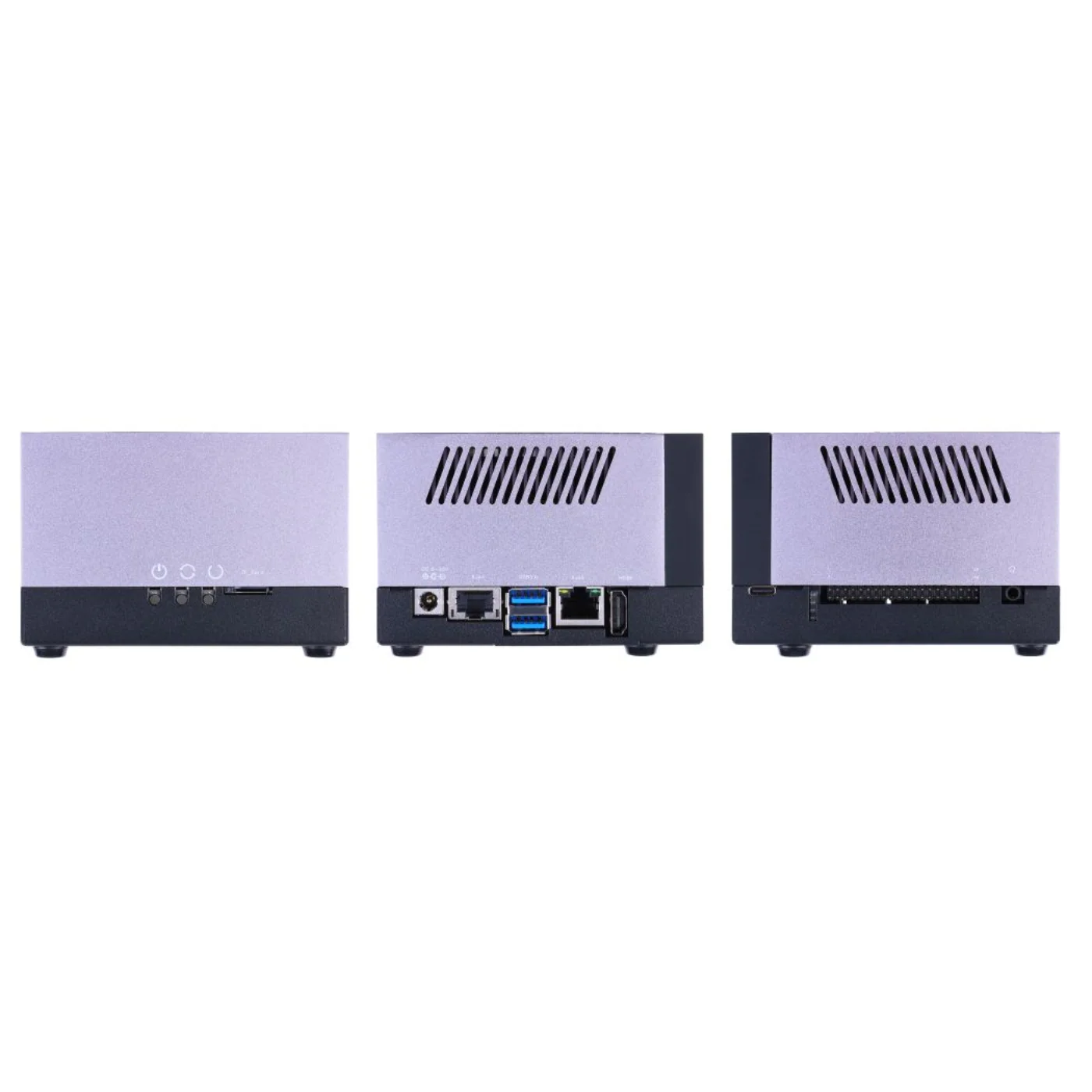

• The hand-size edge AI device is 107mm x 106.4mm x 70.5mm and includes the Jetson AGX Orin™ production module, a heatsink with a cooling fan, an enclosure, and a power connector.
• PCIe X16, GbE, 10GbE, 3x USB 3.2, HDMI 2.1, M.2 Key M, M.2 Key E, 2.4/5GHz Wi-Fi, Bluetooth, 16 lane MIPI CSI-2, 40-pin header.
• Pre-installed JetPack 5.1.2, Linux OS BSP, support for Jetson applications, and major AI frameworks and software platforms all help to accelerate solution delivery.

Hardware Overview:

Top View:

Bottom View:

Important Upgrades:

• Upgrade the A605 carrier board to version 2.3 on November 25, 2024. There are a few adjustments.
• To address the issue of device reboot caused by using some USB devices with high dynamic current, the 5V power supply solution was altered (the power IC was replaced with a TI TPS5301DGS).
• Optimized PCB layout.
• The Wi-Fi module was replaced with the BL-M8822CP1, and the software driver was updated concurrently.

Applications:

Traffic Management:

• License plate detection
• Car detection
• Pedestrian detection

Industry 4.0:

• Helmet detection
• Hard hat detection
• Custom PPE detection
• Visual Anomaly Detection

Retail:

• Sentiment analysis
• Retail store items detection

Robotics:

• Under-ice sensing ROV
• Warehouse towing robot
• Edge AI into the Wild:
• Wildfire detection

Agriculture:

• Weeding machines
• Tractors
• Livestock detection

Healthcare:

• Medical imaging analysis
