$8.03
Intermediate Digital Electronics Kit—
$8.03
The Story

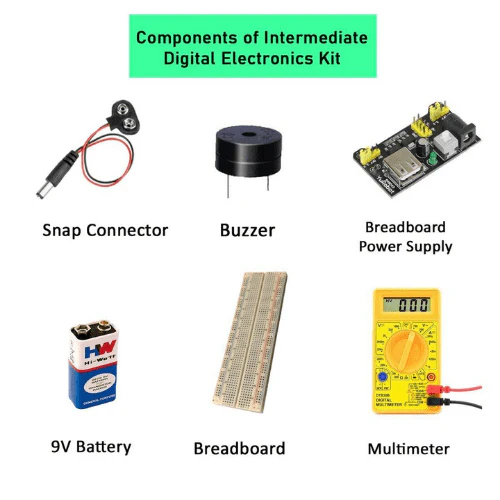

Intermediate Digital Electronics Kit
The Intermediate Digital Electronics kit consists of a plethora of logic gate ICs along with buttons and LEDs which can be used to give input to the gates and visualize their outputs.
It is an Intermediate level Electronic Components Starter kit that includes all essential components for DIY electronics projects. This kit includes everything you'll need to get started with your prototype projects.
Led[Light-emitting diode]:
LED is an abbreviation for light-emitting diode. LED lighting products use up to 90% less energy than incandescent light bulbs. An electrical current flows through a microchip, illuminating the tiny light sources known as LEDs, resulting in visible light.
Breadboard:
A breadboard (also known as a plug block) is used to create temporary circuits. It is beneficial to designers because it allows components to be easily removed and replaced. It is useful for someone who wants to build a circuit in order to demonstrate its operation and then reuse the components in another circuit.
Breadboard Power Supply:
The 3.3V/5V Breadboard Power Supply Module has a multi-purpose female USB socket as well as dual 5 V and 3.3 V power rails. The 3.3V/5V Breadboard Power Supply Module is designed to fit snugly into a standard 400 or 800 tie-point breadboard.
Multimeter:
A multimeter is a measuring device that can measure a variety of electrical properties. A typical multimeter can measure voltage, resistance, and current, and is also known as a volt-ohm-milliammeter (VOM) because it includes a voltmeter, an ammeter, and an ohmmeter.
Resistor:
A resistor is a component of an electronic circuit that limits or regulates the flow of electrical current. Resistors can also be used to supply a fixed voltage to an active device such as a transistor.
IC [Integrated Circuit]:
The IC [Integrated Circuit] is a small electronic device made of semiconductor material that contains many microscopic elements like diodes and transistors. Capacitors and resistors.
Jumper Wire:
A jumper wire is an electric wire used for connecting remote electric circuits on printed circuit boards. It is possible to short-circuit and short-cut (jump) to the electric circuit by connecting a jumper wire to the circuit.
Hi-Watt 9V Battery:
The most common and portable 9V battery is the Hi-Watt 9V Battery. It is non-rechargeable and provides a high-capacity, low-cost solution for a wide range of electronic devices. This battery provides a high-capacity and low-cost solution for a wide range of electronic devices. It is used in conjunction with its own battery snap. The battery clip can be used to power LEDs or other devices using a 9V battery. It's used in electronic toys, clocks, walkie-talkies, smoke alarms, hand-held test equipment, digital instruments, transistor radios, and other applications.
Micro Pushbutton:
The micro pushbutton is a small and inexpensive single pole single-through switch (SPST) that can be soldered on a printed circuit board (PCB). When pressed, this push button closes a circuit and is typically used as a reset button.
Note: The package dimensions are 22x15cms and weigh about 50 grams.
Applications:
- Can be used to build flip-flops,
- Can be used to build a Shift register
- Can be used to build Mux and demux circuits and other combinational circuits.
