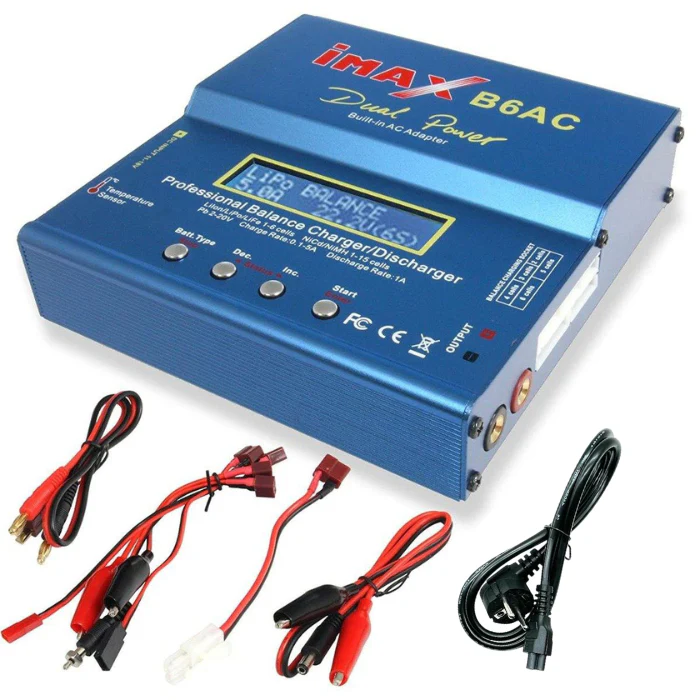

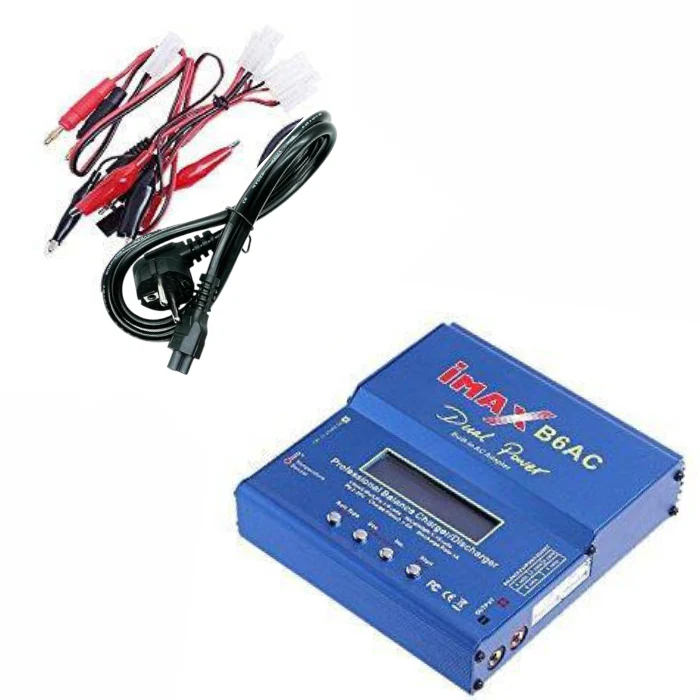

iMax B6AC Smart Balance Charger 80W

iMax B6AC Smart Balance Charger 80W

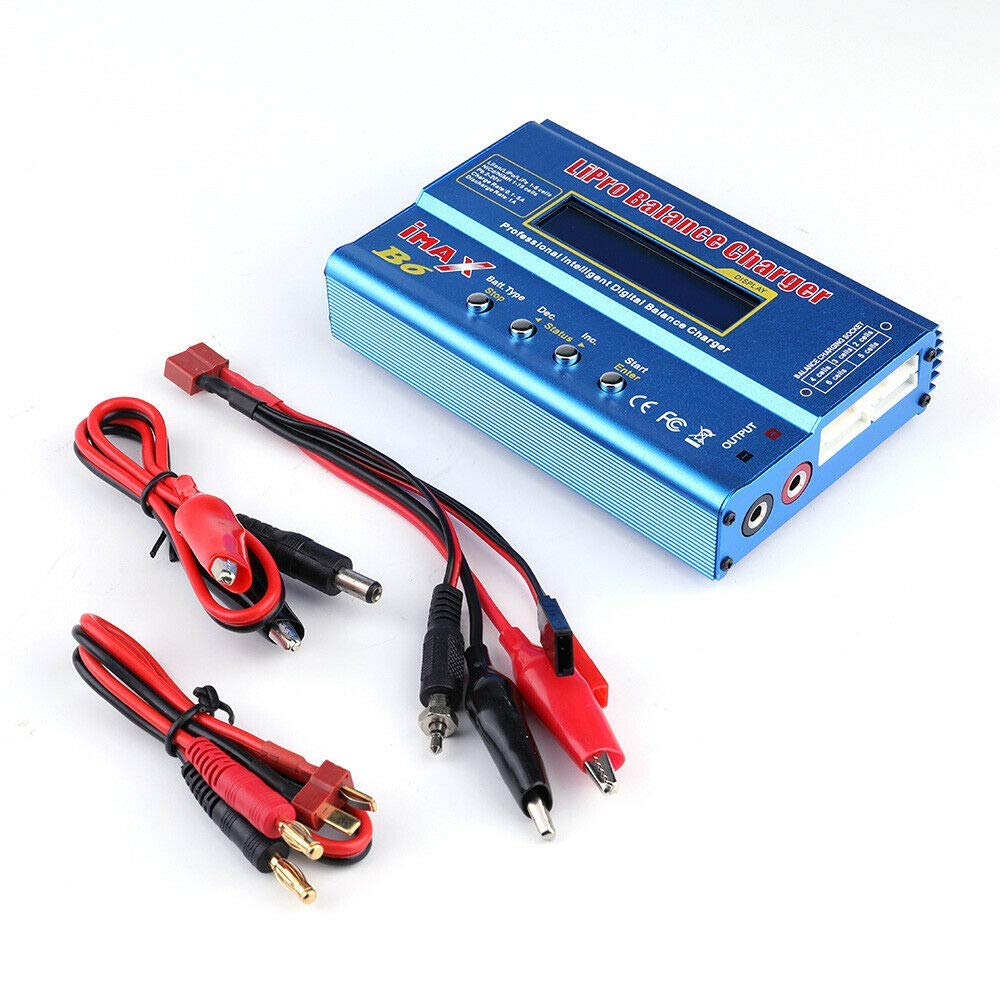

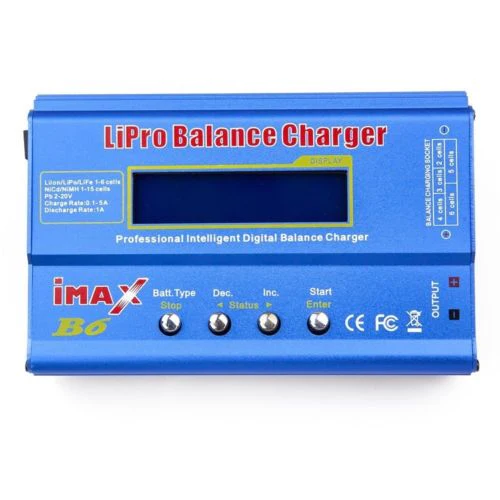

The IMAX B6 80W 6A Charger/Discharger 1-6 Cells is a highly advanced charger that boasts the ability to charge, balance, and discharge various types of batteries including LiIon, LiPoly, LiFe (A123), NiCd, and NiMH. This original iMax B6AC battery charger is microprocessor-controlled, similar to top-of-the-line chargers, and is equipped with the ability to balance individual cells in your Li-XX batteries.

With a charging capacity of 0.1 to 6.0A, it can easily charge packs up to 6S. Additionally, This 80W Lipo battery charger for RC batteries features input voltage protection, preventing it from draining your car battery while in the field, and also provides storage charging for your packs when not in use. Its flexibility is further enhanced by the fact that this iMax B6AC 80W smart charger dual power can be powered by any power supply delivering between 11 to 18V.

The charger's JST-XH charge plug renders it compatible with Zippy, HXT, Loong Max, and any other pack with a JST adapter.

Features

• Microprocessor controlled
• Delta-peak sensitivity
• Individual cell balancing
• LiIon, LiPoly, and LiFe are capable
• NiCd and NiMH capable
• Large range of charge currents
• Storage charge function
• Time limit function
• Portable balance charger
• Input voltage monitoring (Protects car batteries in the field)
• Data storage (Store up to 5 packs in its memory)
• Battery break-in and cycling.

Safety Tips for Charging LiPo Batteries

• Always use a LiPo-compatible charger like the iMAX B6AC Smart Balance Charger.
• Charge batteries on a non-flammable surface or inside a LiPo safety bag.
• Never leave batteries unattended while charging.
• Stop charging immediately if you notice swelling, heat, smoke, or odor.
• Use balance charging mode to ensure equal voltage across all cells.
• Do not overcharge — each cell should not exceed 4.2V.
• Avoid charging damaged, swollen, or punctured batteries.
• Set the charging current to 1C or lower (e.g., 2.2A for a 2200mAh battery).
• Charge only at room temperature and away from direct sunlight or heat sources.
• Store charged batteries at 3.7–3.8V per cell in a LiPo-safe bag or metal box.
