CD4049 - Hex Inverting Buffer/Converter IC

The CD4x Series CD4049 hex buffers are monolithic complementary MOS (CMOS) integrated circuits constructed with N- and P-channel enhancement mode transistors. These devices feature logic-level conversion using only one supply voltage (VDD).

The input signal level can exceed the VDD supply voltage when these devices are used for logic-level conversions. These devices are intended for use as hex buffers, CMOS to DTL/TTL converters, or as CMOS current drivers, and at VDD=5.0V, they can drive directly two DTL/TTL loads over the full operating temperature range.

check out : CD4504 - Hex Voltage Level Shifter IC

Pinout:

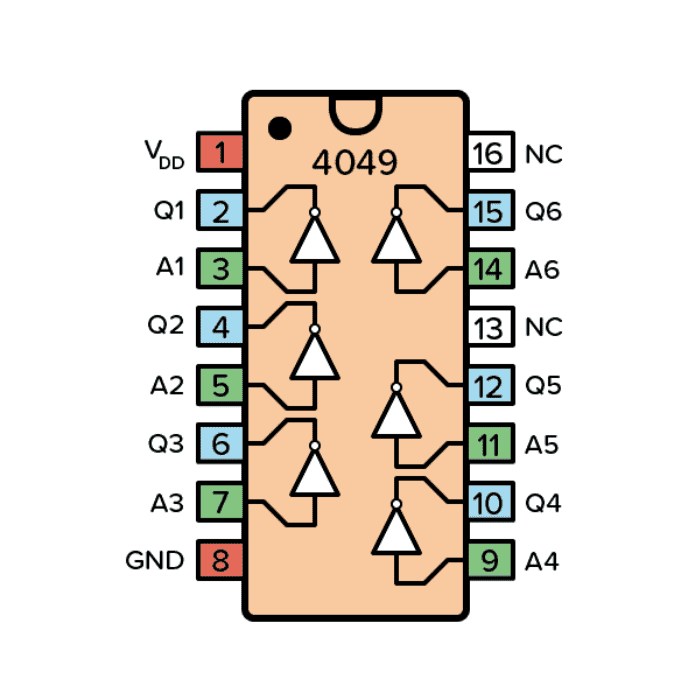

Pinout Of CD4049 IC
Pin Name Pin # Type Description
VDD 1 Power Supply Voltage (+3 to +15V)
GND 8 Power Ground (0V)
Q1-Q6 2, 4, 6, 10, 12, 15 Input Inputs to the inverters
A1-A6 3, 5, 7, 9, 11, 14 Output Outputs from the inverters
NC 13, 16 Not Connected

Applications:

  • CMOS hex inverter/buffer
  • CMOS to DTL/TTL hex converter
  • CMOS current "sink" or "source" driver
  • CMOS high-to-low logic level converter
