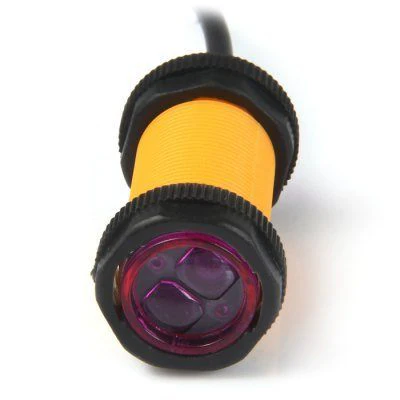

E18-D80NK Infrared Sensor Module

E18-D80NK Infrared Sensor Module

The E18-D80NK Adjustable Infrared Sensor Switch 3-80cm is a set of transmitters and receivers in one of the photoelectric switch sensors. The detection distance can be adjusted according to the demand. The sensor has a detection range of 3-80cm.

The Adjustable Infrared Sensor Switch is small, easy to use, inexpensive, easy to assemble and can be widely used in a robot to avoid obstacles, interactive media, industrial assembly lines, and many other occasions.

The switching signal output differs in accordance with the obstacles. It remains high when no obstacles and remains low when there are obstacles. There is a bright light behind the probe to detect the scope of 3cm – 80cm.



Explore the Proximity Sensors at best prices.

Connection:

• Red wire: +5V
• Green wire: GND
• Yellow wire: Digital output

Application:

• In the food and pharmaceutical industries, and in packaging plants to detect product size to spot any errors, or simply spot their absence
• Detection of colours
• Monitoring bigger areas for objects with light grids
• Logistics and materials handling:
• Automatic doors for building and public transport
