M5 Stack BUS Module

M5 Stack BUS Module

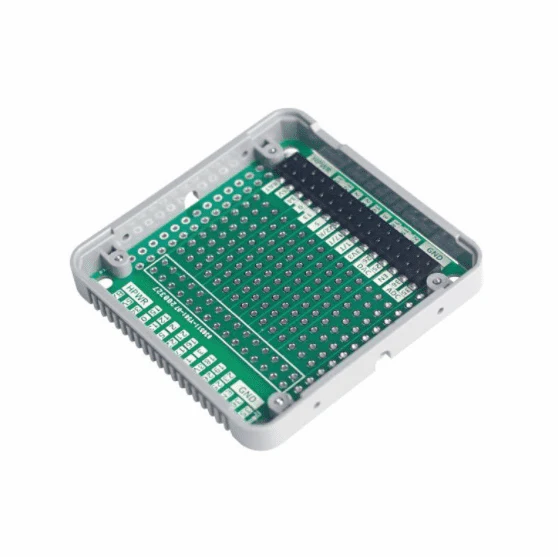

BUS allows you to add your own custom circuit design to the universal prototype perboard so it could interact with the M5Core via M-BUS.

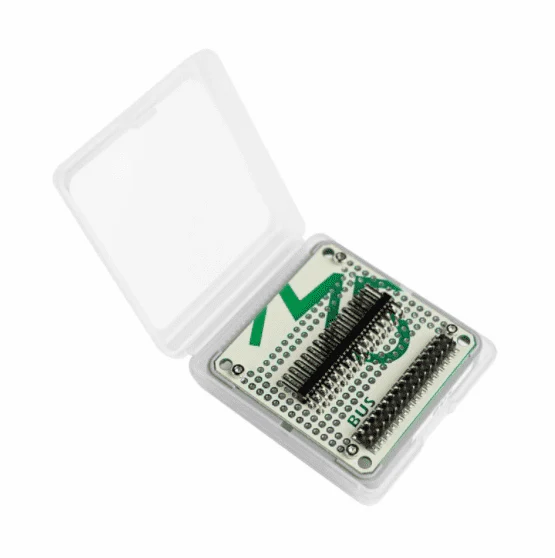

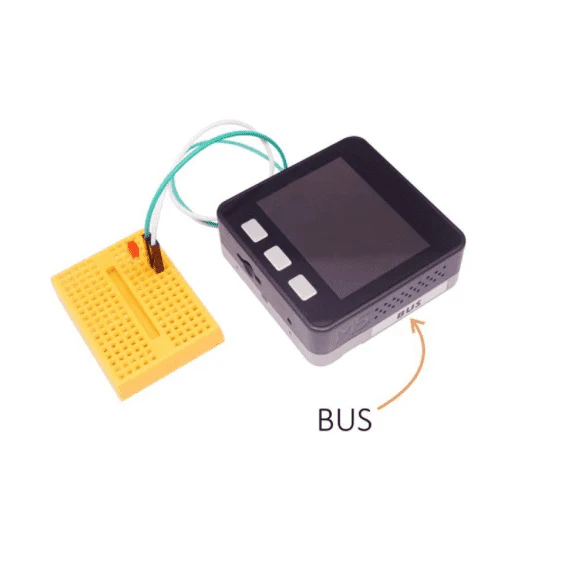

Just like other M5modules, BUS can connect with other layers through M-BUS, while in this module, we've extended the M_BUS pin to pin to the other side of the board. You might need to cut off the fence on the side to be able to expose the pins. We've included a 2*15 90 degrees pin set in the package.

Also check Guide Rail for M5 Base. It features a spring-type buckle structure and multiple M3 screw holes for flexible installation
