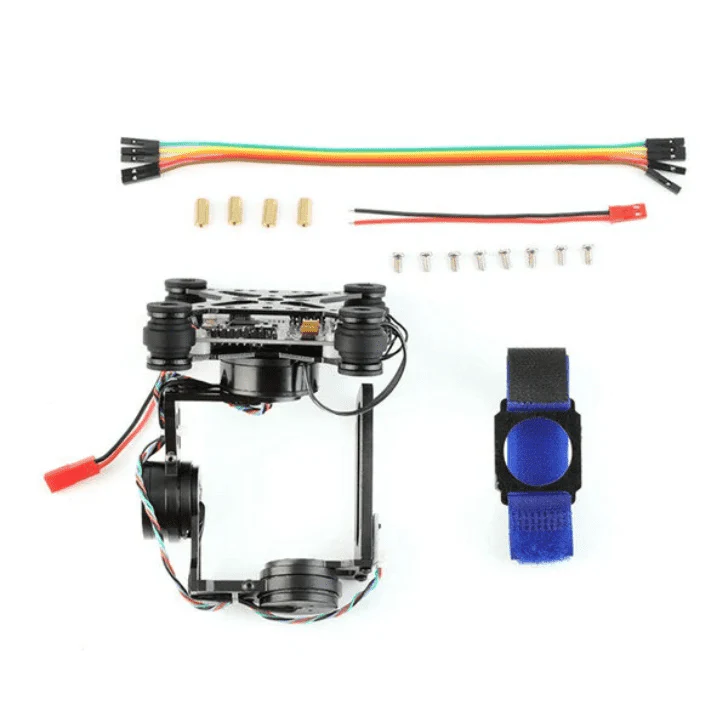

3 Axis FPV Camera Brushless Gimbal with Control Board

3 Axis FPV Camera Brushless Gimbal with Control Board

Using the STM32F103RC at 72 MHz processor, the processing speed is 10 times faster than the 8, the response is faster and more sensitive.
On-board Bluetooth can be installed, and PID parameter adjustment can be performed through the mobile phone, which is much more convenient for outdoor parameter adjustment.

Key Features:

• Shock Resistance: Coming with rubber ball for better shock resistance. it is easy for you to control.
• Power Choosing: It is RTF version. Recommended power supply is 12V(3s battery), and battery is not included.
• Compatible With: It is compatible for 3 / 3+ / 4 camera.

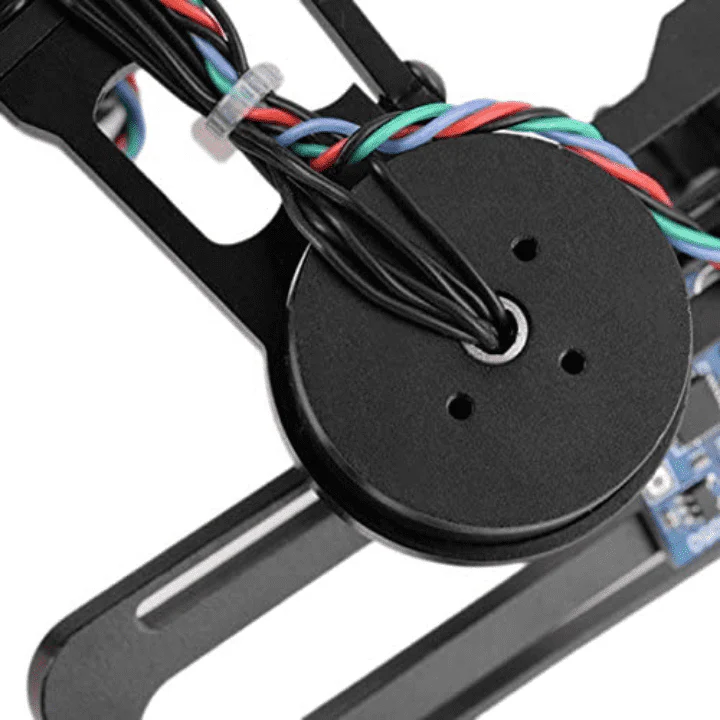

• Aluminium-alloy Structure: With CNC machined aluminium-alloy structure, it is light relatively. Brushless motor drives gimbal directly.
• High Performance: Being equipped with motor is good to heat dissipation. Excellent stability, high technology and superb craftsmanship.

How to install 3 Axis FPV Camera Gimbal:

1. Remove damping ball, open the top mounting plate
2. The mounting plate with a screw lock in the lower part of the aircraft
3. Install vibration ball
4. Install cameras, compact cameras with tape state

Application:

•  GOPRO3/GOPRO4 and series compatible cameras
